JDH 5.211 Aluminium seismic expansion joint with EPDM inserts



You are here : Homepage | Expansion joints | Floor expansion joints with flexible insert | JDH 5.211 Aluminium seismic expansion joint with EPDM inserts
Aluminium floor profile with EPDM insert
Embedded floor profile for tiles, stone, etc.
{"autoplay":"true","autoplay_speed":"3000","speed":"300","arrows":"true","dots":"true","rtl":"false"}

JDH 5.211

Seismic expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

Aluminum, nitrile

COLOUR :

natural

VERSION :

flat, angle

IMPLEMENTATION :

embedded

CHARACTERISTICS :

  • Seismic floor expansion joint
  • Embedded floor joint
  • Expansion joint for openings up to 250mm

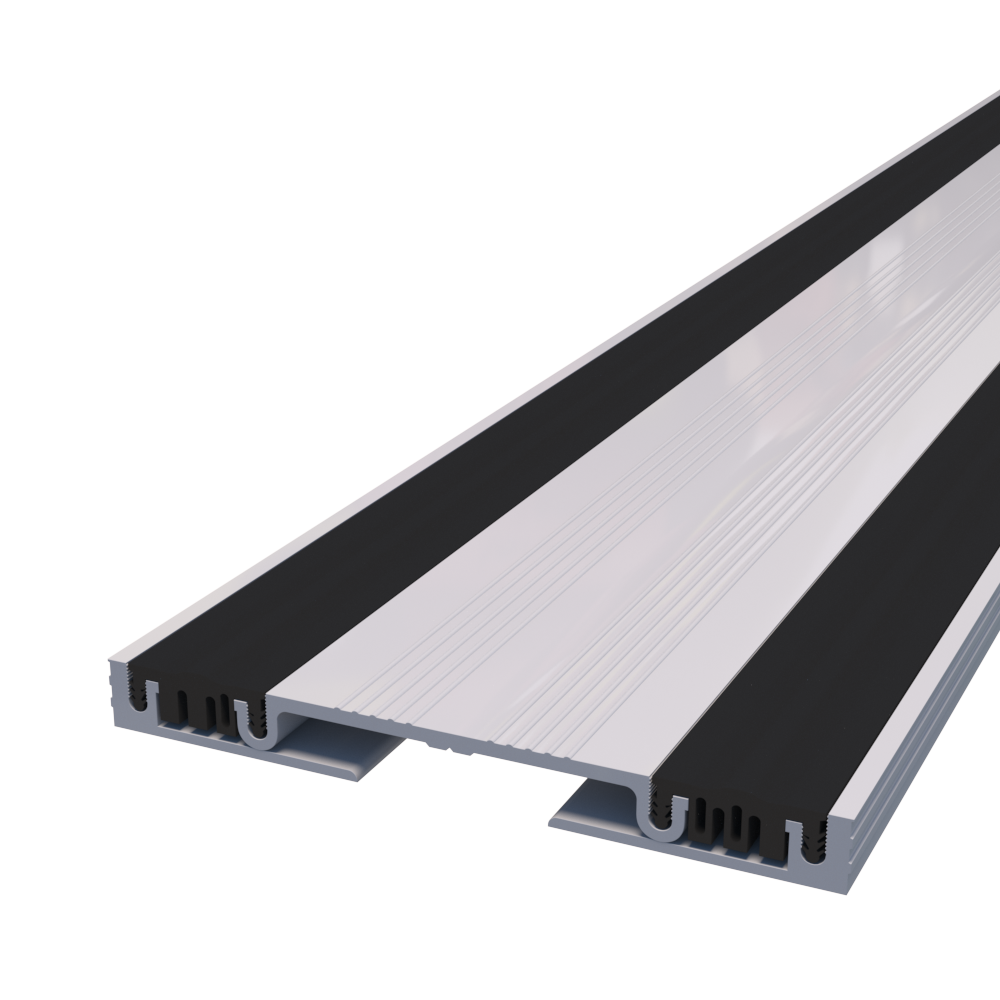

    • The JDH 5.211 floor expansion joint has been added to our range of floor joints this year. Composed of aluminium side plates and a center section and two interchangeable flexible EPDM inserts, this profile is suitable for light pedestrian and carts. This product is also available as an angle (floor/wall) with a visible or invisible side plates to the wall for a perfect finish.
    PDF

    Technical sheet

    CAD Drawing

    Download our brochures

    These documents are reserved for members

    REFERENCES
    JDH 5.211    		5.211-0505.211-0755.211-1005.211-1255.211-1505.211-1755.211-2005.211-250
    GAP UP TO (MM)
    W    		050075100125150175200250
    MOVEMENTS (MM)+25/-25+37,5/-37,5+50/-50+62,5/-62,5+75/-75+87,5/-87,5+100/-100+125/-125
    VISIBLE WIDTH (MM)
    S    		205252252328328381406584
    TOTAL WIDTH (MM)
    B    		205252252328328381406584
    HEIGHT (MM)
    H    		2020202020202020
    LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load-bearing capacity is based on the initial position of the joint. The indicated load-bearing capacities are based on pneumatic wheels vehicles with a contact surface of 200x200mm.
