JDH 5.26 R+3 Expansion joint adapted for resilient flooring or resin finishes



You are here : Homepage | Expansion joints | Floor expansion joints with flexible insert | JDH 5.26 R+3 Expansion joint adapted for resilient flooring or resin finishes
Profilé de dilatation JDH5.26 R+3
Profilé renforcé avec revêtement de sol souple ou résine. Pour trafic de voitures.
{"autoplay":"true","autoplay_speed":"3000","speed":"300","arrows":"true","dots":"true","rtl":"false"}

JDH 5.26 R+3

Mechanical floor joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

nitrile

COLOUR :

black

grey

RAL colours

VERSION :

flat and angle

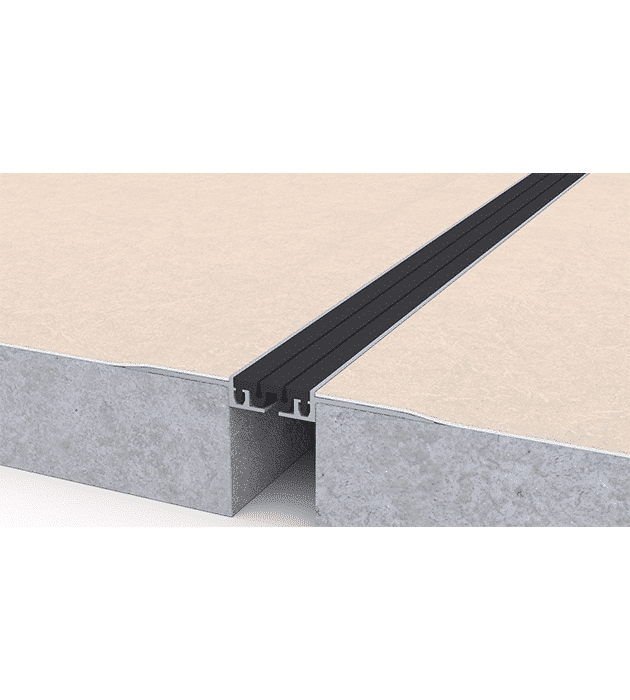

Surface mounted floor expansion joint profile for interior or exterior. Made of drilled and coutersunk reinforced aluminium side plates associated with a hot weldable flexible insert.
Specially adapted for resilient flooring or resin finishes.
PDF

Technical sheet

CCTP Specifications

Download our brochures

These documents are reserved for members

REFERENCES
JDH 5.26 R+3		5.26 R+3-0205.26 R+3-0305.26 R+3-0405.26 R+3-0505.26 R+3-060
GAP UP TO (MM)
W		2030405060
MOVEMENTS (MM)+3 / -3+7 / -7+10 / -10+7 / -7+10 / -10
VISIBLE WIDTH (MM)
S		140150160180195
TOTAL WIDTH (MM)
B		140150160180195
LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
slide to see more

The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
