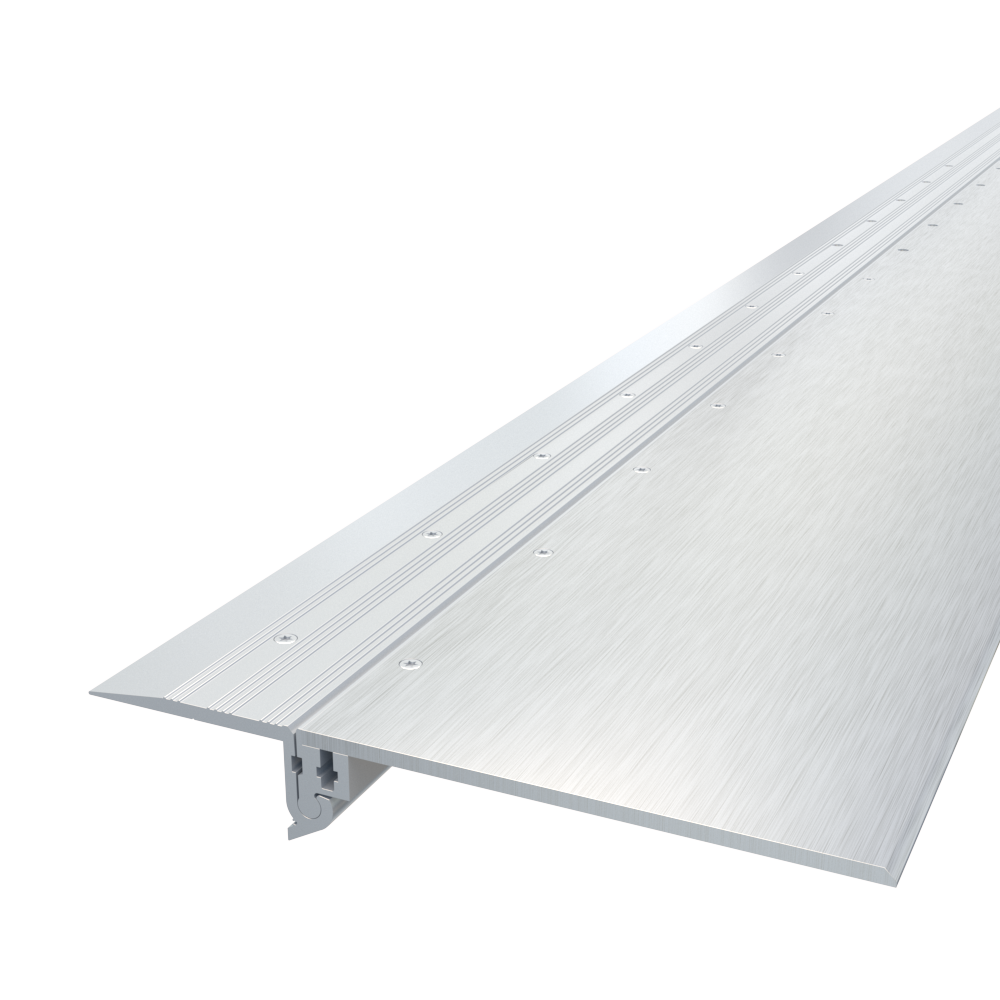

JDH 6.35

All metal floor expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

COLOUR :

natural

VERSION :

flat and angle

CHARACTERISTICS :

  • Expansion joint for level differences up to 80mm
  • For intensive vehicular traffic
  • For joint gaps from 50 to 300mm
    • All metal floor expansion joint for exterior and interior use. Suitable for all types of finishes: screed, natural stone, marble etc. Recommended in case of vertical differences up to 80mm.

    For indoor and outdoor floor joints with a gap between 50mm and 300mm and with level differences up to 80mm.
    Installation on finished floors. Suitable for intensive light-vehicle traffic.
    Section length of 3m.
    Floor-to-floor type, and floor-to-wall type.

    PDF

    Technical sheet

    Download our brochures

    These documents are reserved for members

    REFERENCES
    JDH 6.35    		6.35-0506.35-0756.35-1006.35-1506.35-2006.35-2506.35-3006.35-050 A6.35-075 A6.35-100 A6.35-150 A6.35-200 A6.35-250 A6.35-300 A
    GAP UP TO (MM)
    W    		50751001502002503005075100150200250300
    MOVEMENTS (MM)+85/-30+75/-50+100/-75+120/-120+145/-145+175/-175+215/-215+65/-30+80/-50+100/-75+100/-125+100/-145+125/-175+150/-215
    VISIBLE WIDTH (MM)
    S    		238277302400501601686137177202286330430515
    TOTAL WIDTH (MM)
    B    		238277302400501601686137177202286330430515
    HEIGHT (MM)
    H    		6991213121269912121213
    LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
