JDH 6.282 Seismic floor expansion joint for large openings



You are here : Homepage | Expansion joints | Floor expansion joints all metal | JDH 6.282 Seismic floor expansion joint for large openings
Seismic ground expansion joint
Seismic floor profile
{"autoplay":"true","autoplay_speed":"3000","speed":"300","arrows":"true","dots":"true","rtl":"false"}

JDH 6.282

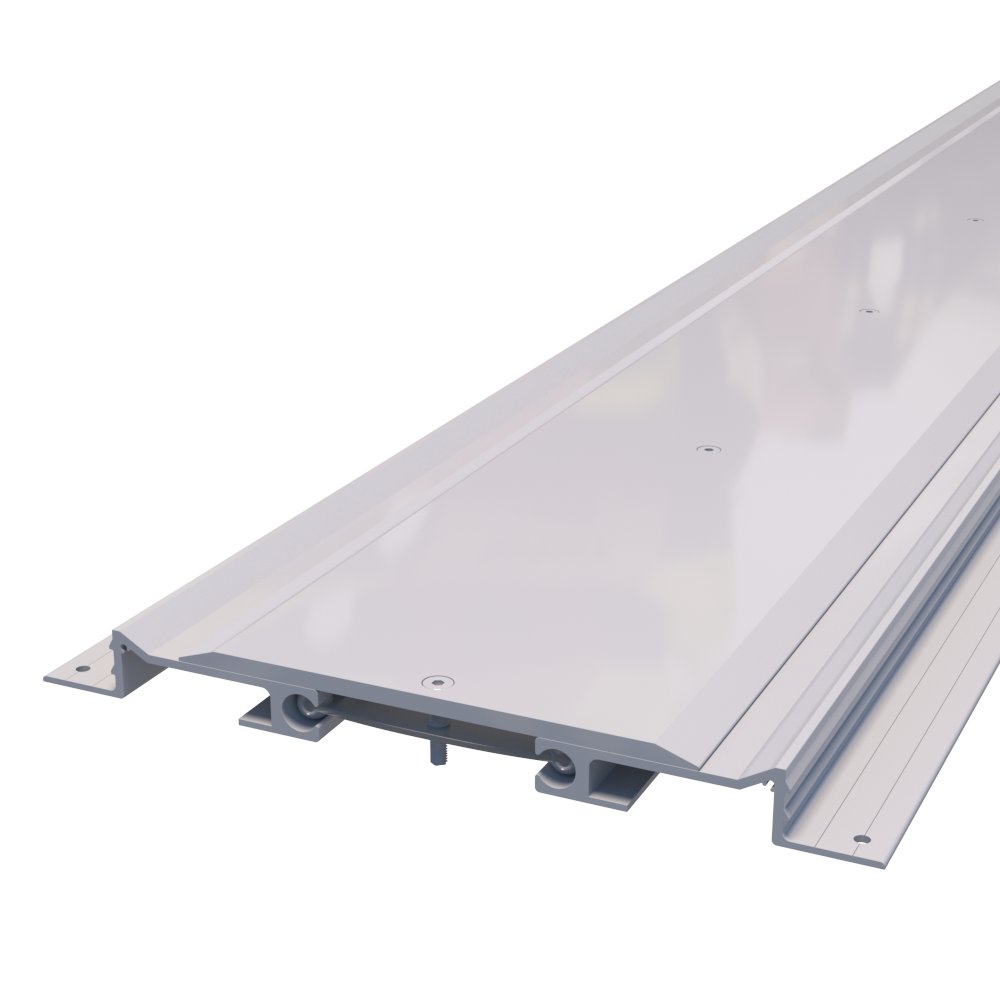

Seismic floor expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

Aluminium or steel

COLOUR :

natural

VERSION :

flat and angle

IMPLEMENTATION :

Embedded

CHARACTERISTICS :

  • Stainless steel or aluminum expansion joint
  • Profile for large movements
  • For openings up to 300 mm
    • The JDH 6.282 seismic expansion joint in stainless steel or aluminum is suitable for openings up to 300 mm (other openings on request). Design may differ from that shown for stainless steel versions. Please consult us. Several centerplate thicknesses are available in aluminum and stainless steel to suit your needs.
    PDF

    Technical sheet

    CAD Drawing

    Download our brochures

    These documents are reserved for members

    REFERENCES
    JDH 6.282    		6.282-0506.282-0756.282-1006.282-1506.282-2006.282-2506.282-300
    GAP UP TO (MM)
    W    		050075100150200250300
    MOVEMENTS (MM)+25/-25+37,5/-37,5+50/-50+75/-75+100/-100+125/-125+150/-150
    VISIBLE WIDTH (MM)
    S    		204205230280511561611
    TOTAL WIDTH (MM)
    B    		275275300350630681730
    HEIGHT (MM)
    H    		43434.343505050
    LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load-bearing capacity is based on the initial position of the joint. The indicated load-bearing capacities are based on pneumatic wheels vehicles with a contact surface of 200x200mm.
