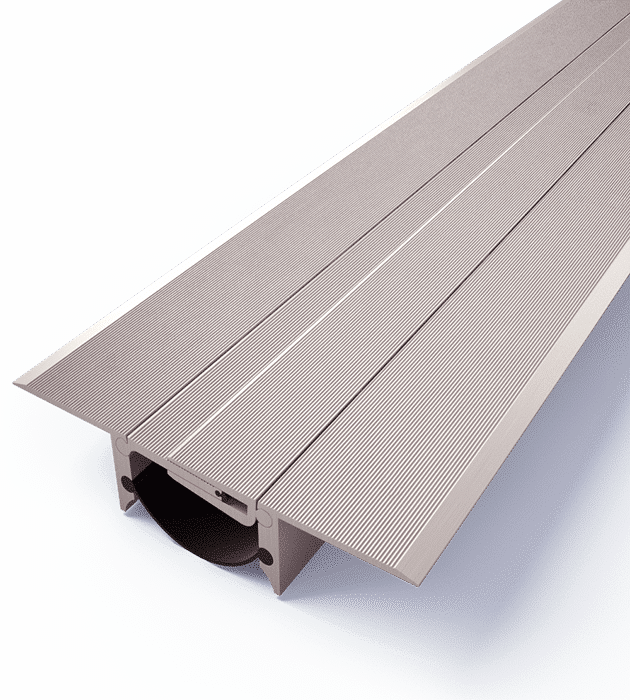

JDH 6.36

All metal floor expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

COLOUR :

natural

VERSION :

flat and angle

CHARACTERISTICS :

  • Surface mounted floor expansion joint
  • For intensive traffic
  • For joint gaps from 50 to 135 mm
    • All aluminium floor expansion joint, surface-mounted, for indoor and outdoor applications. The two top aluminium components slide one into the other, which takes up any movement due to expansion and contraction. Suitable for all types of finish: concrete, screed, tiling, etc.
    PDF

    Technical sheet

    Download our brochures

    These documents are reserved for members

    REFERENCES
    JDH 6.36    		6.36-0506.36-075 6.36-0906.36-115 6.36-135
    GAP UP TO (MM)
    W    		507590115135
    MOVEMENTS (MM)+5 / -5+10 / -10+12.5 / -12.5+20 / -20+30 / -30
    VISIBLE WIDTH (MM)
    S    		175200215240260
    TOTAL WIDTH (MM)
    B    		175200215240260
    HEIGHT (MM)
    H    		4343434343
    LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
