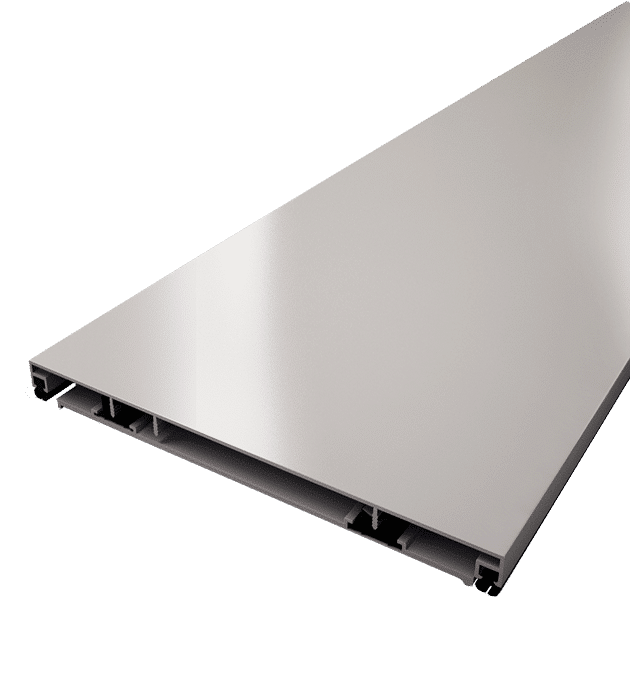

JDV 4.12

Suspended ceiling expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

COLOUR :

natural

RAL colours

VERSION :

flat and angle

CHARACTERISTICS :

  • Expansion joint special wide seismic movements
  • Vertical installation on facade, wall and ceiling
  • For joint gaps from 50 to 200 mm
  • All metal seismic expansion joint for ceilings.
    Flat and angle models are available.

    All-metal expansion joint for railway stations, airports, shopping centers…

    BIM File

    REFERENCES
    JDV 4.12
    4.12-0504.12-1004.12-1504.12-2004.12-050 A4.12-100 A4.12-150 A4.12-200 A
    GAP UP TO (MM)
    W
    5010015020050100150200
    MOVEMENTS (MM)+25 / -25+50 / -50+75 / - 75+100 / - 100+25 / -25+50 / -50+75 / - 75+100 / - 100
    VISIBLE WIDTH (MM)
    S
    170220270320110160210260
    TOTAL WIDTH (MM)
    B
    170220270320110160210260
    HEIGHT (MM)
    H
    16,516,517,517,516,516,517,517,5
