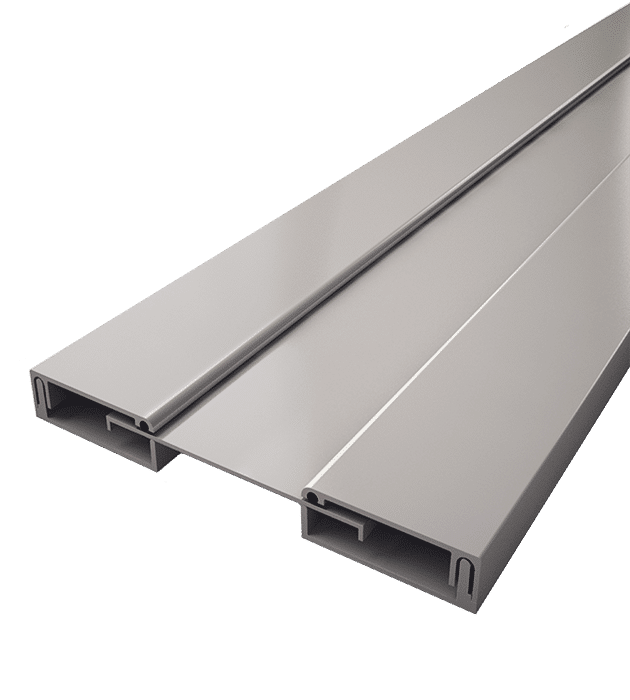

JDV 4.03 Seismic vertical expansion joint in aluminium

An economical aluminium expansion joint

The simple design of this seismic expansion joint for interior walls and ceilings enables fast installation in renovation projects. It consists of fixing clips on one side of the expansion joint using 14 stainless steel screws 4.5×50 mm and nylon plugs 8×40 mm per 3 ml length, and a cover plate which is installed by pressing into the clips. Please note that it will be impossible to separate the cover plate from the clips without damaging the parts once the elements are engaged.

Seismic vertical expansion joint for aesthetic aspect

The design of the plate makes the fasteners completely invisible for a perfect finish. The earthquake expansion joint can also be powder-coated to blend in perfectly with the building. The corner model (JDV 4.03 A) is available to ensure continuity with the flat model. The JDV 4.03 aluminium expansion joint is suitable for interior applications, and can be combined with our floor joint covers such as CJE-PF, or JDH 6.17. Please consult us to identify compatible expansion joint profiles.

Treatment of seismic expansion joints

Fixed on one side only, the aluminum cover plate is free to perform wide expansion, contraction and shearing movements. This seismic vertical expansion joint can handle initial openings of between 50 and 100 mm (other widths available upon request), and movements of up to +50 mm and -90 mm. This makes it the ideal product to meet the need for advanced expansion jointing needs in demanding architectural environments. It is compatible with VEDAFEU© fire-stop solutions such as VEDAFEUN20© or VEDAFEUSV©. A waterproof membrane such as VED’EPDM© can also be added to the aluminium expansion joint.

Vertical expansion joint for interior applications

The JDV 4.03 seismic vertical expansion joint is suitable for all types of application: expansion joints in concrete, stone and tiled walls. It is suitable for all types of buildings: stadiums, shopping centers, universities, hospitals, etc.

Don’t hesitate to ask our sales team for any support you may need for this earthquake expansion joint (technical data sheets, installation instructions, Autocad drawings, photos, references, or any other documents).

For exterior applications, we recommend our JDV 4.02 expansion joint. This is also a vertical expansion joint that can be fastened on 2 sides with concrete screws for special buildings such as prisons for example.

Other aluminium expansion joints for vertical applications

From our range of aluminum expansion joint, here is a selection of profiles that may also be of interest to you:

• CJV Series seismic expansion joint,
• CJ alu Series clip-on vertical expansion joint.

Both solutions are available from stock (unless prior sales).

To help you choose the perfect expansion joint for your configuration is available on request from our sales team. A product selection tool is also available on our website. For any other request, please do not hesitate to contact our team. We would be delighted to help you choose the right seismic vertical expansion joint.
