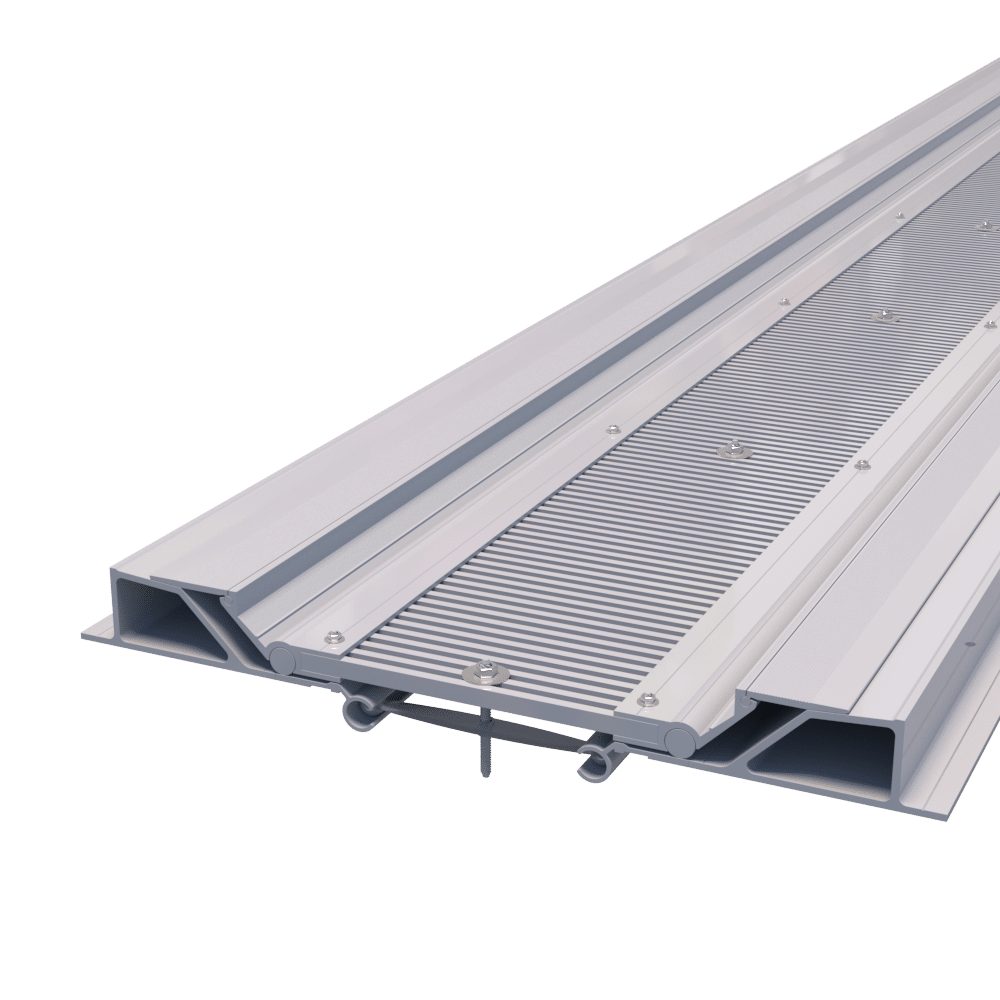

This seismic floor expansion joint is specially designed for use with tiles or stone. It is suitable for both indoor and outdoor use with pedestrian traffic only. This recessed profile is made of aluminum.
Technical sheet
CAD Drawing
Download our brochures
These documents are reserved for members
REFERENCES JDH 6.40
6.40-075
6.40-100
6.40-150
6.40-200
6.40-250
6.40-300
6.40-400
6.40-500
6.40-600
6.40-850
GAP UP TO (MM) W
75
100
150
200
250
300
400
500
600
850
MOVEMENTS (MM)
+40/-20
+50/-50
+75/-75
+100/-100
+125/-125
+150/-150
+200/-200
+200/-200
+200/-200
+400/-400
VISIBLE WIDTH (MM) S
441
466
557
691
742
792
892
992
1092
1642
TOTAL WIDTH (MM) B
510
525
616
750
800
850
950
1050
1150
1701
HEIGHT (MM) H
60
60
60
60
60
60
60
60
60
60
LOAD-BEARING CAPACITIES
